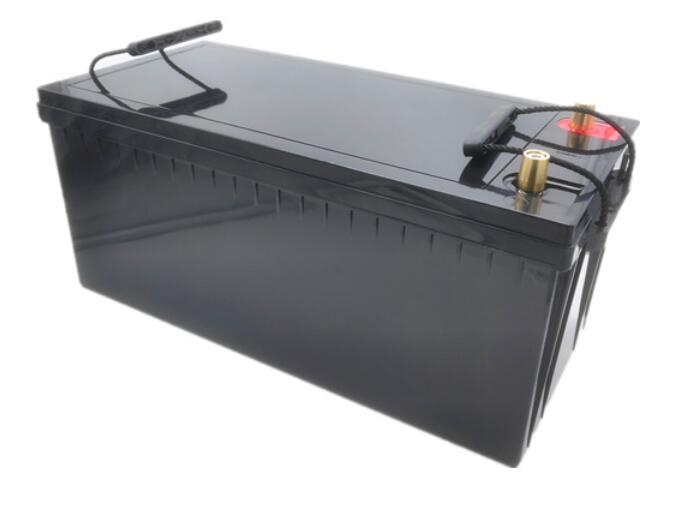

LiFePO4 Batteries 24V 200Ah with built -in BMS and Bluetooth .
These battery pack have been passed by UN38.3 ,CE,MSDS ,UKCA certificate ,and UL ,IEC62133 for cells ,and ROHS for BMS system.
Support to provide the BLE APP with customer LOGO or custom APP.
Silk-screen printing or sticker with your LOGO on case are welcome.
Features of LiFePO4 Battery
- Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
- Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
- Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
- Wider Temperature Range: -20 C~60 C.
- Superior Safety: Lithium Iron Phosphate chemistry eliminates
- the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
- Increased Flexibility: Modular design enables deployment of up to four batteries in series and max ten batteries in parallel.
Specification of battery pack
|
Electrical Characteristics |
Nominal Voltage |
25.6V |
|
Nominal Capacity |
Minimum: 200Ah |
|
|
Energy |
5120Wh |
|
|
Internal Resistance |
≤30mΩ |
|
|
Cycle Life |
>2000 cycles @1C 100%DOD; >3000 cycles @1C 80%DOD; ( >5000 cycles @ 0.2C 80-100% DOD. |
|
|
Months Self Discharge |
<3% |
|
|
Efficiency of Charge |
100% @0.5C |
|
|
Efficiency of Discharge |
96~99% @1C |
|
|
Standard Charge |
Charge Voltage |
28.8±0.2V |
|
Charge Mode |
CC/CV |
|
|
Recomm.Charge Current |
20A-100A |
|
|
Max. Charge Current |
100A |
|
|
Charge Cut-off Voltage |
29.2V |
|
|
Standard Discharge |
Continuous Current |
100A-200A optional |
|
Max. Pulse Current |
300A/10s, 500A /31ms |
|
|
Discharge Cut-off Voltage |
20.0V |
|
|
Environmental |
Charge Temperature |
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
|
Discharge Temperature |
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
|
|
Storage Temperature |
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity |
|
|
Plastic Case |
ABS+PC UL V-0 flame resistant |
|
|
Dimensions (in./mm.) |
L340*W170*H210mm |
|
|
Weight (lbs./kg.) |
14.6kg |
|
|
Terminal |
M8 |
|
|
Protocol (optional) |
Bluetooth |
