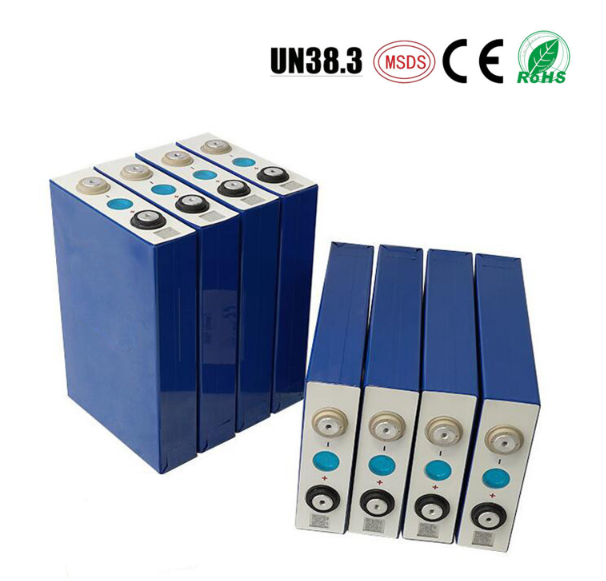

Grade A 3.2V 90Ah Deep Cycle LiFePO4 Battery Cells Lithium Rechargeable Battery with QR Code, Perfect for Boat, RV, Golf Cart, Solar System, UPS etc
Lithium offers several performance benefits versus its sealed lead acid (SLA) equivalent .
A lithium battery's capacity is independent from the discharge rate and provides constant power throughout it's discharge.
The degredation of a lithium battery at a high temperature is significantly reduced in comparison to SLA.
Lithium has ten times the cycle life as SLA at room temperature.Even at an elevated temperature, lithium still has increased cycle life.
Specification:
echnical Parameters：
|
No. |
Items |
Specifications |
|
1 |
Nominal Voltage |
3.2V |
|
2 |
Nominal Capacity |
90AH |
|
3 |
Standard Charge Current |
0.2C-0.5C |
|
4 |
Max. Charge Current |
1C |
|
5 |
Continuous Discharge current |
70A (1C rate) |
|
6 |
Peak Discharge Current |
2C(140A) |
|
7 |
Charge Cut-off Voltage |
3.65V |
|
8 |
Discharge Cut-off Voltage |
2.0V |
|
9 |
Inner Resistance (Impedance) |
≤ 0.2mΩ-0.5mΩ (At 0.2C rate, 2.0V cut-off) |
|
10 |
Weight |
1.94Kg |
|
11 |
Dimensions |
Length: 190mm Width: 36mm High: 130m |
|
12 |
Operating Temperature |
Charging: 0°C ~ 45°C Discharging: -20°C ~ 60°C (The cell surface temperature cannot exceed 70°C) |
|
13 |
Storage Temperature/Humidity |
Temperature: -10°C ~ +35°C Humidity:65%±20%RH (optimal store temperature of 22 ± 5°C for long term storage) |
|
14 |
Cycle Life |
≥3000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard) |
